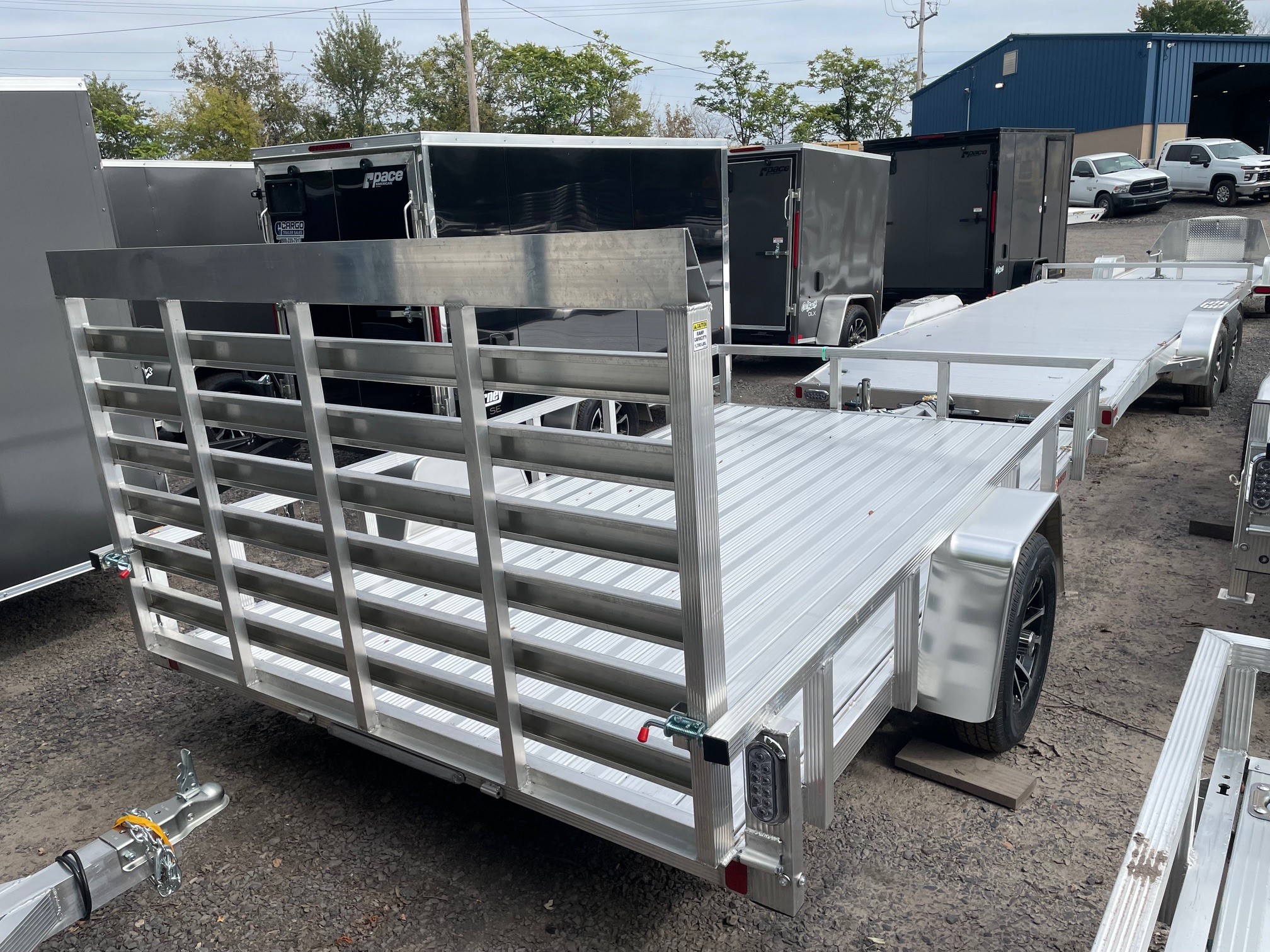

2026 Sport Haven AUT712D - SH-769

2026 Sport Haven AUT712D

Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.

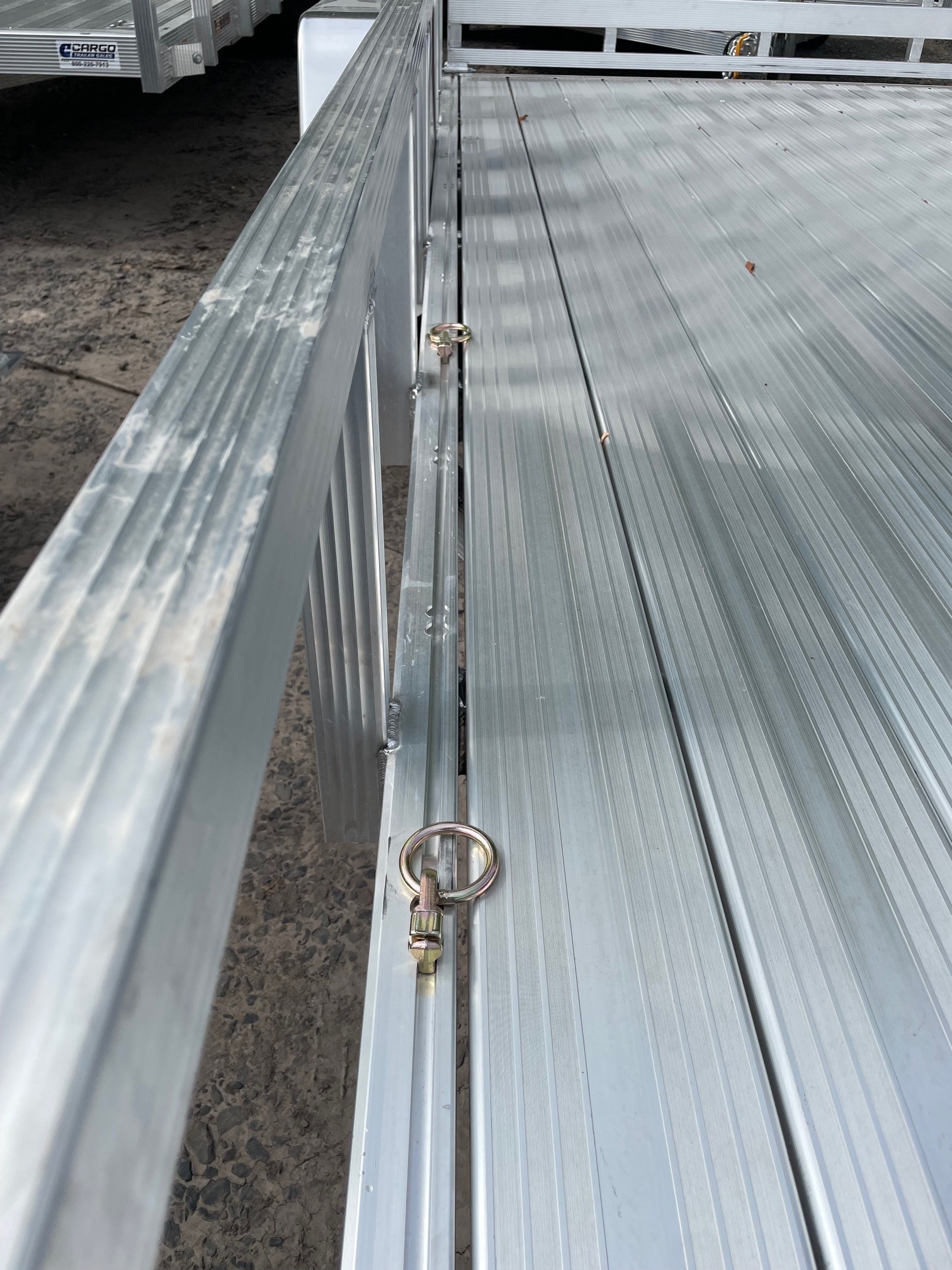

The Connect Tie Down Track features holes every  12" along the Integrated frame rails where double stud tie downs attach.

Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6

Features may include:

• Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.
• Integrated Connect Tie Down Track Built into Frame rails - Connect points every 12"
• Aluminum Decking - Anti slip aluminum plank decking
• Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications
• 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
• Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
• Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
• 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
• Aluminum Fenders - corrosion resistant, lightweight, and durable
• LED Lighting - Limited Lifetime LED warranty

Construction Specs

• Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
• 2" Wide Top Deck Rail
• 2" x 2" Top Deck Rail Uprights
• 6" Slip Resistant Aluminum Decking
• All Aluminum 4' Rear Ramp

Component Specs

• LED Lights
• 15" Aluminum Wheels
• ST207/75R15C Radial Tires
• 3,500 lb Capacity Axles
• 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
• 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
• 3,500 lb Capacity Zinc Plated Couplers
• 3,200 lb Capacity, 27" Safety Chains
• 1,200 lb capacity Swivel Wheel Jack

Misc Specs

• 4-Way Flat Wiring Harness
• 2" Ball
• 14" Hitch Height
• 17" Deck Height
• 13" Rail Height Above the Deck
• 2,990 lb Gross Vehicle Weight Rating (GVWR)

Optional

Popular Options:

• Aluminum Treadplate Sides
• Lateral 5' Ramp (7' Wide Models)
• Bi-fold Lateral 5' Ramp (7' Wide Models)
• Bi-fold Ramp (Rear and/or Side)
• Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)

 AUTD-LR:

• Aluminum Ramps built into side rails
• Side Load from either side
• Built in Spare Tire Mounting holes (kit sold separately)
• Aluminum Decking
• AUT712, AUT714, AUT714T thru AUT724T
