Description
2027 Sport Haven AUT510D
CONNECT TIE DOWN TRACK
Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.
The Connect Tie Down Track features holes every 12" along the Integrated frame rails where double stud tie downs attach.
Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6
AUTD MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
Features May Include:
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
- 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
AUTD MODEL OPTIONS
Popular Options:
- Aluminum Treadplate Sides
- Lateral 5' Ramp (7' Wide Models)
- Bi-fold Lateral 5' Ramp (7' Wide Models)
- Bi-fold Ramp (Rear and/or Side)
- Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
- AUTD-LR:
- Aluminum Ramps built into side rails
- Side Load from either side
- Built in Spare Tire Mounting holes (kit sold separately)
- Aluminum Decking
- AUT712, AUT714, AUT714T thru AUT724T
Dealer Notes
5x10, 2027 Sport Haven Aluminum Deluxe Utility Trailer, LED Lights, Swing Up Jack w/ Wheel, Dexter Torsion Axle, Radial Tires, Aluminum Wheels
Info
Industry
Trailer
Make
Sport Haven
Model
AUT510D
Trim
Base
Year
2027
Price
3445
Stock Number
SH-822
Category
Utility - Open
Subcategory
Other
Condition
New
Availability
Available
Dry Weight
460
Color
BARE ALUMINUM
Hitch Type
2" Ball
Axles
1
Length
10
Width
5
Specifications
GVWR
2,990 lb
Width
Deck: 60 in | Overall: 78 in
Frame
Outer Rails: (2) 2 in x 4 in Fluted | Fluted Aluminum Tube
Hitch Height
14 in
Fenders
Aluminum

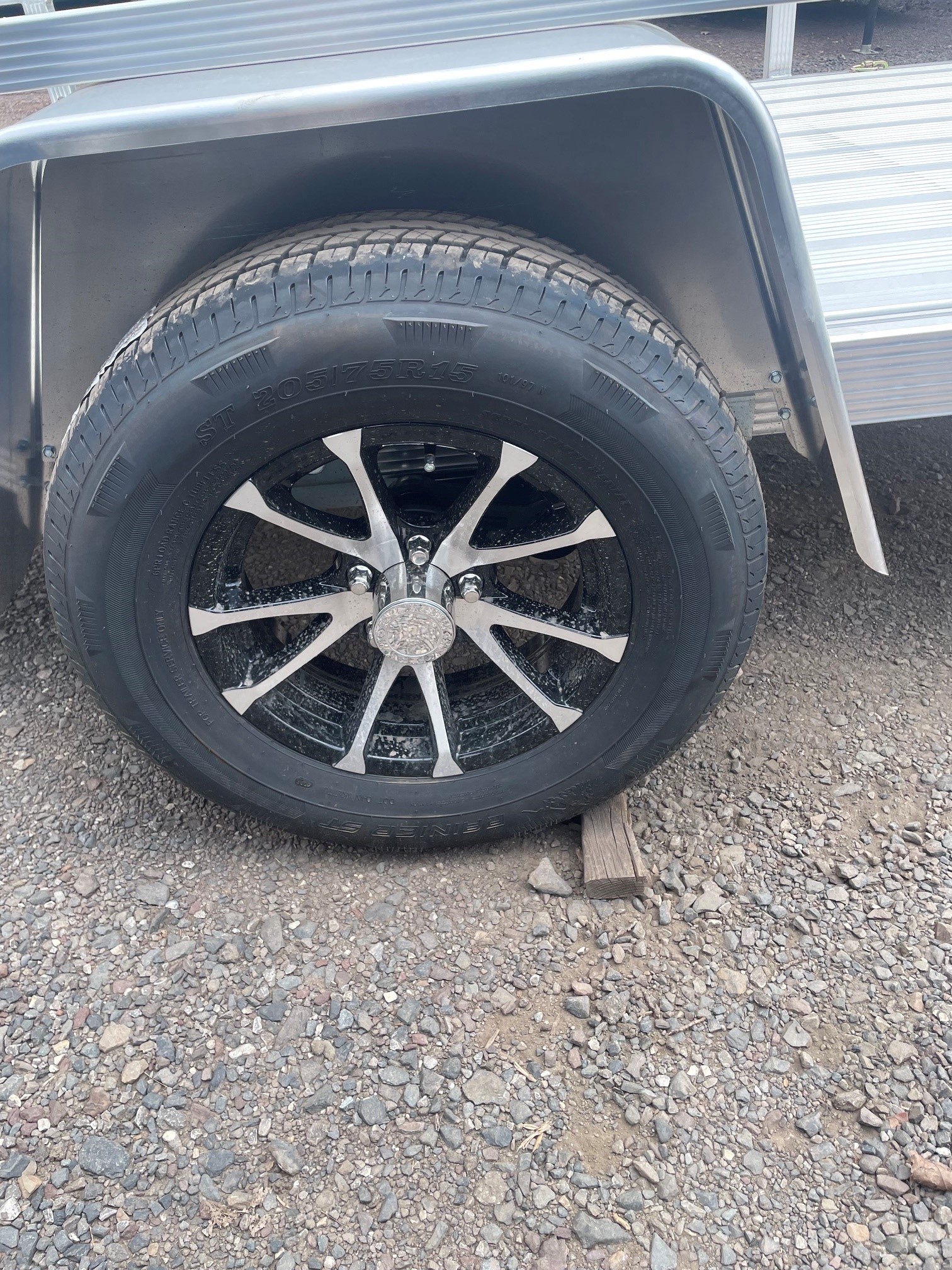

Tires
ST207/75R15C Radial Tires
Tongue
(1) 3 in x 3 in Fluted | Supports: (2) 1.75 in x 3 in Fluted | Fluted Aluminum Tube
Max Load
Payload: 2,530 lbs
Height
Deck: 17 in | Rail Above: 13 in
Crossmembers
Front & Rear: (2) 3 in x 4 in Fluted | Middle: (4) 1.75 in x 3 in Fluted | Fluted Aluminum Tube
Dry Weight
Curb: 460 lbs
Coupler
3,500 lb Capacity Zinc Plated
Top Rail
2 in Wide Top Deck Rail | 2 in x 2 in Top Deck Rail Uprights
Ramps

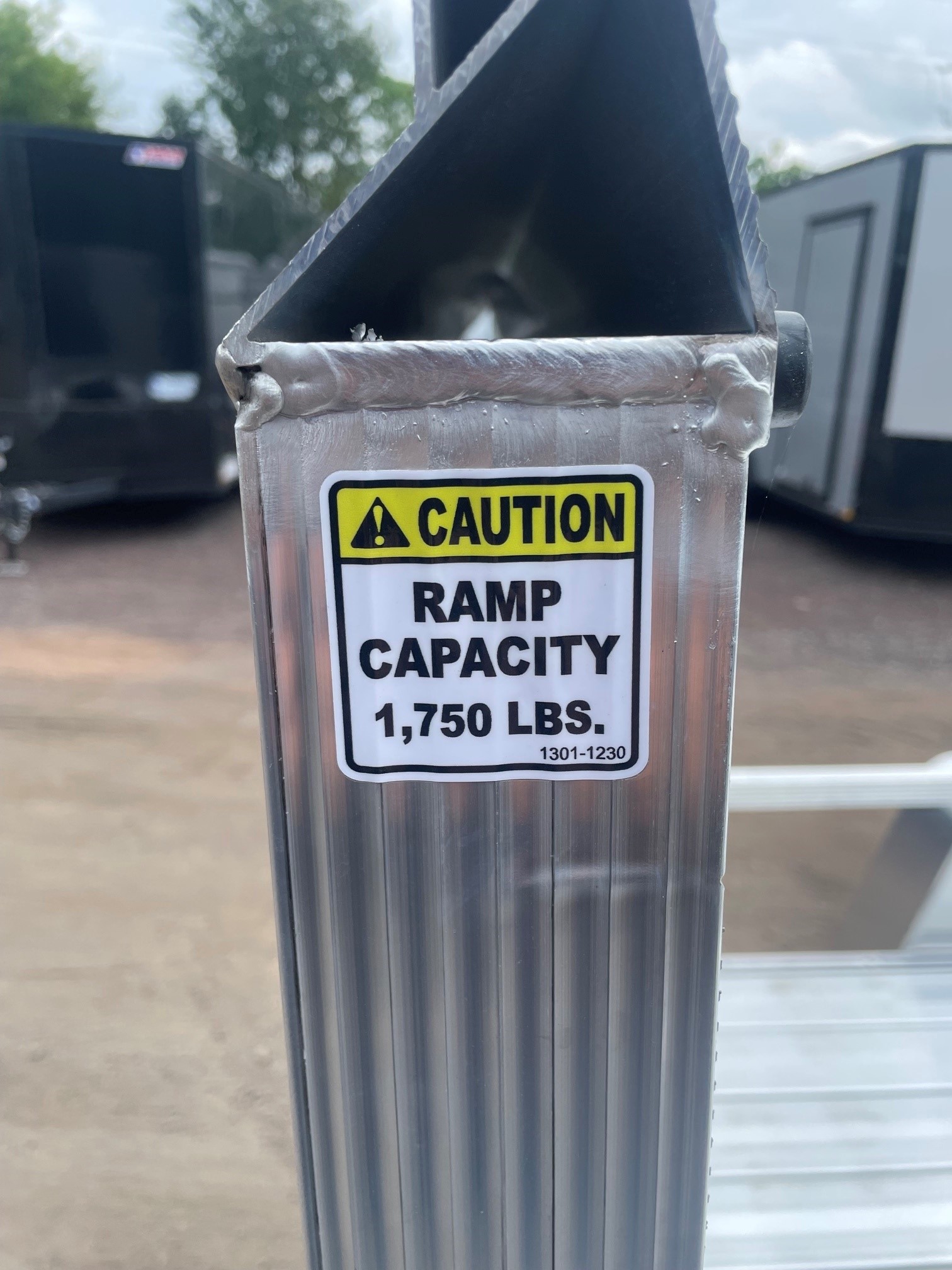

All Aluminum 4 ft Rear Ramp | Standard 4 ft Ramp Capacity: 1,750 lbs | Optional 4 ft Folding Ramp Capacity: 1,500 lbs
Length
Deck: 120 in | Overall: 162 in
Axles
Capacity: 3,500 lb | Capacity Torsion: 3,500 lb
Wheels
15 in Aluminum
Safety Chains
Capacity: 3,200 lb | 27 in
Lights
LED Lights
Warranty
Limited Lifetime LED warranty
Notes
2 in Ball | 4-Way Flat Wiring Harness | 6 in Slip Resistant Aluminum Decking | 1,200 lb capacity Swivel Wheel Jack
