2027 Sport Haven AUT716TD - SH-819
Get in Touch
Description

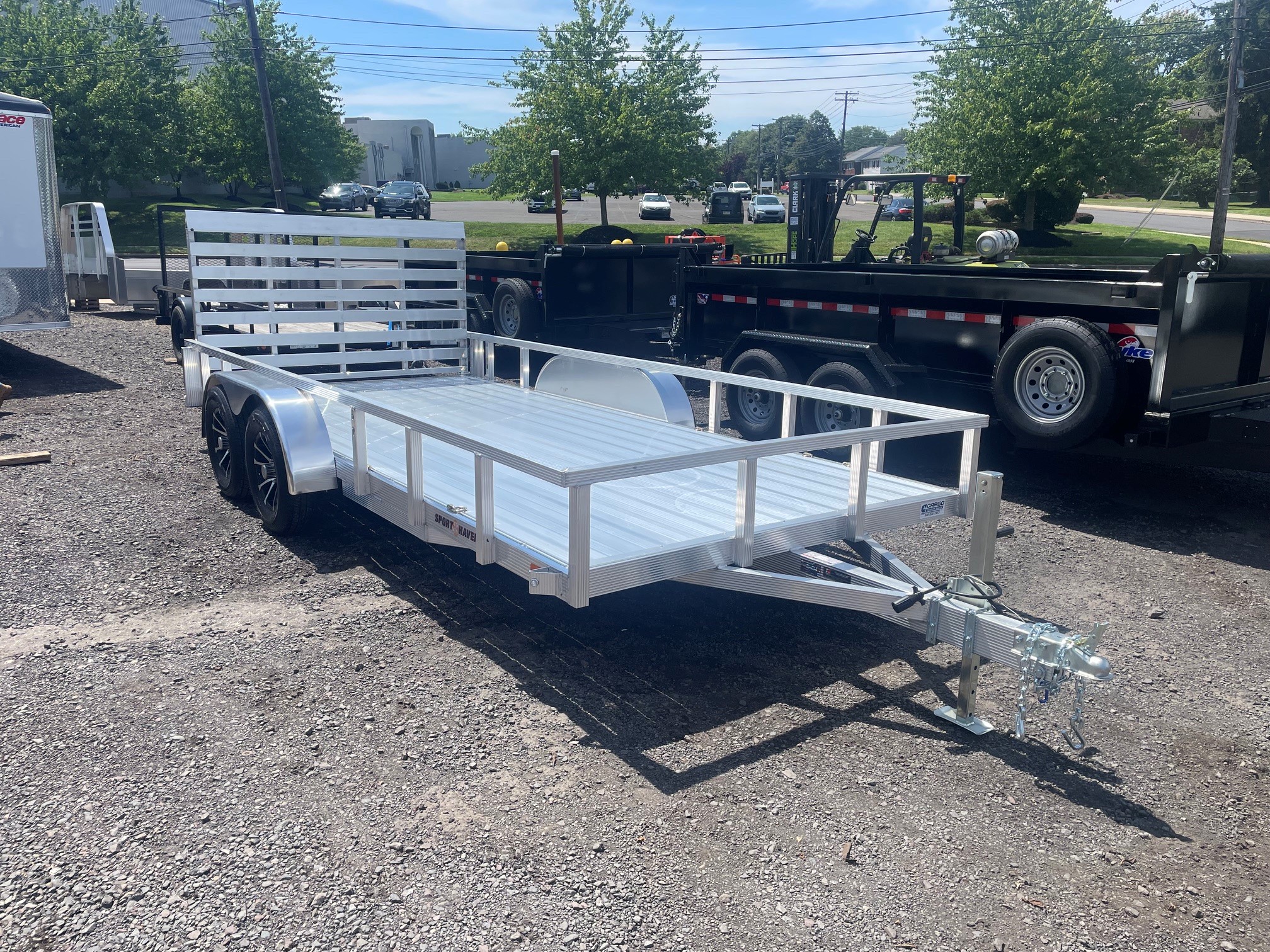

2027 Sport Haven AUT716TD
CONNECT TIE DOWN TRACK
Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.
The Connect Tie Down Track features holes every 12" along the Integrated frame rails where double stud tie downs attach.
Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6
AUTD MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
Features May Include:
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 5/4" x 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- 4" Drop Axles
- Double Eye Spring Suspension
- 7,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball Compatible
- Electric Brakes On Both Axles
- 13" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
AUTD MODEL OPTIONS
Popular Options:
- Aluminum Treadplate Sides
- Lateral 5' Ramp (7' Wide Models)
- Bi-fold Lateral 5' Ramp (7' Wide Models)
- Bi-fold Ramp (Rear and/or Side)
- Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
AUTD-LR:
- Aluminum Ramps built into side rails
- Side Load from either side
- Built in Spare Tire Mounting holes (kit sold separately)
- Aluminum Decking
- AUT712, AUT714, AUT714T thru AUT724T
Dealer Notes
2027 Sport Have 7x16 Tandem AxleTongue Jack, Extruded Aluminum Deck, 15" Aluminum Wheels, Radial Tires, 1750# Capacity Ramp, LED Lights, 3500# Sping Tandem Axle Suspension, A Frame Tongue, All Aluminum Tube Frame, Integrated Tie Down track with 4 D-Rings Included
Info
Industry
Trailer
Make
Sport Haven
Model
AUT716TD
Trim
Base
Year
2027
Price
6696
Stock Number
SH-819
Category
Utility - Open
Subcategory
Other
Condition
New
Dry Weight
950
Color
BARE ALUMINUM
Hitch Type
2-5/16" Ball
Axles
2
Length
16
Width
7
Specifications
Notes
2,500 lb capacity Zinc Plated Pad Jack | 2 in Ball Compatible | 4-Way Flat Wiring Harness | 5/4 in x 6 in Slip Resistant Aluminum Decking | 1,200 lb capacity Swivel Wheel Jack
Ramps
All Aluminum 4 ft Rear Ramp | Standard 4 ft Ramp Capacity: 1,750 lbs | Optional 4 ft Folding Ramp Capacity: 1,500 lbs
Top Rail
2 in Wide Top Deck Rail | 2 in x 2 in Top Deck Rail Uprights
Coupler
7,000 lb Capacity Zinc Plated
Brakes
Electric
Dry Weight
Curb: 980 lbs
Crossmembers
Front & Rear: (2) 3 in x 4 in Fluted | Middle: (4) 1.75 in x 3 in Fluted | Above Tongue: (3) 1.75 in x 3 in Fluted | Fluted Aluminum Tube
Height
Deck: 17 in | Rail Above: 13 in
Max Load
Payload: 6020 lbs
Length
Deck: 192 in | Overall: 240 in
Axles
Capacity: 3,500 lb | Drop: 4 in
Wheels
15 in Aluminum
Safety Chains
Capacity: 7,600 lb | 30 in
Lights
LED Lights
Warranty
Limited Lifetime LED warranty
GVWR
7,000 lb
Width
Deck: 83 in | Overall: 101 in
Frame
Outer Rails: (2) 2 in x 4 in Fluted | Fluted Aluminum Tube
Hitch Height
14 in
Fenders
Aluminum
Suspension
Double Eye Spring
Tires
ST207/75R15C Radial Tires
Tongue
(1) 3 in x 5 in Fluted Double Hollow | Supports: (2) 1.75 in x 3 in Fluted | Fluted Aluminum Tube
